Hebeanlage sewage pump 700W 190 L/min | Stornfield

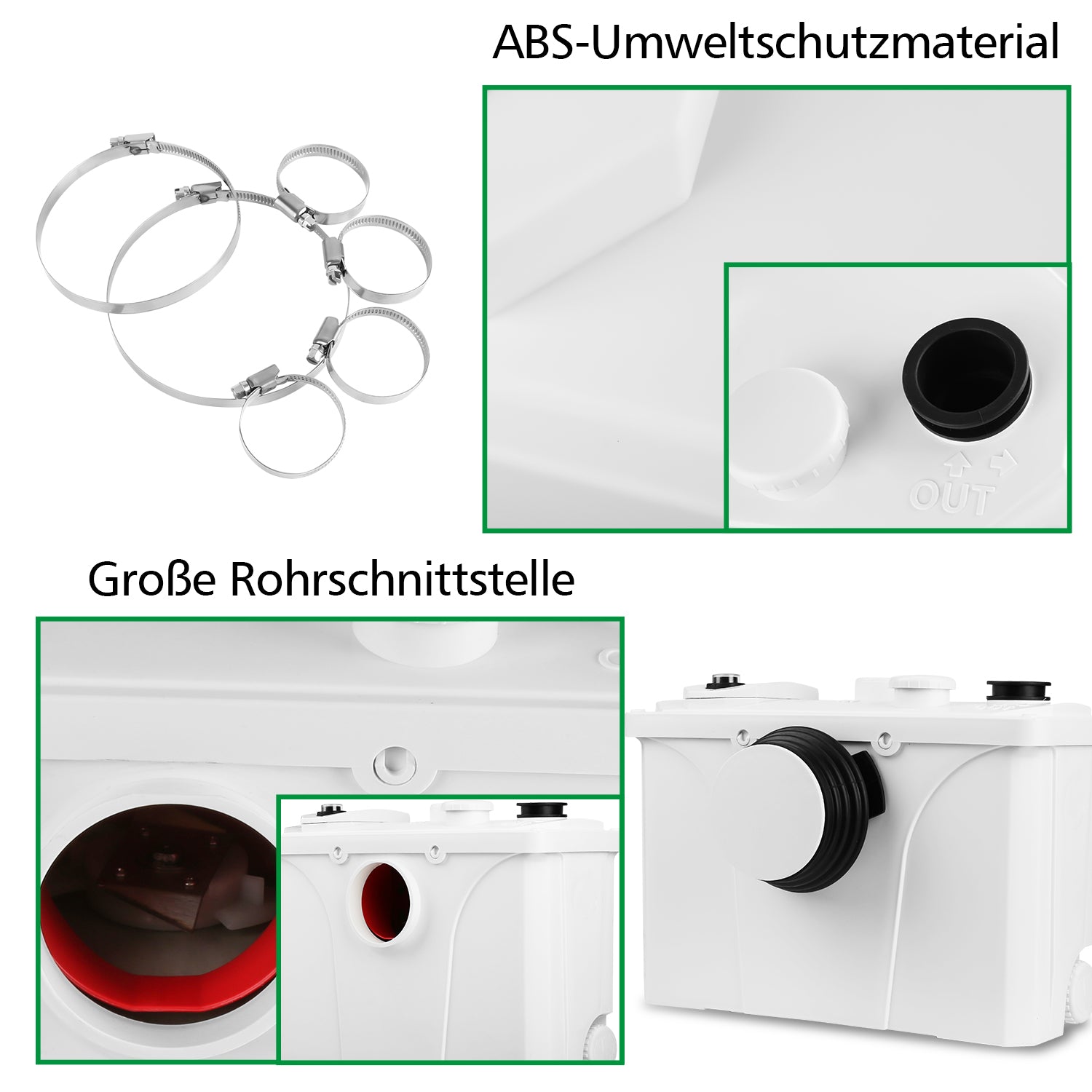

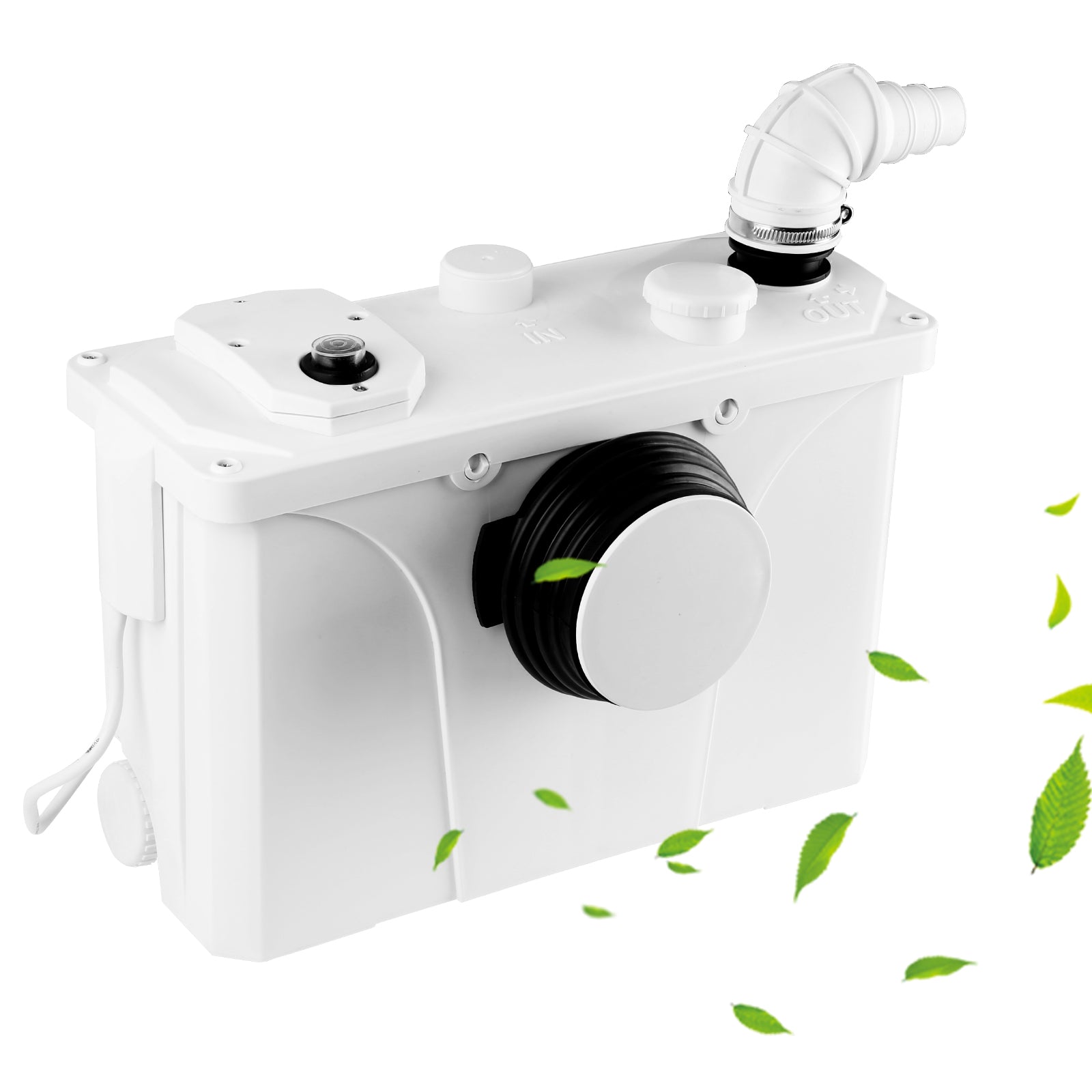

High-quality materials: The lifting station is compact, made of high-quality and durable plastic that does not discolor and is waterproof according to IPx4. A built-in activated carbon filter prevents odors or other unpleasant smells from escaping and ensures fresh air.

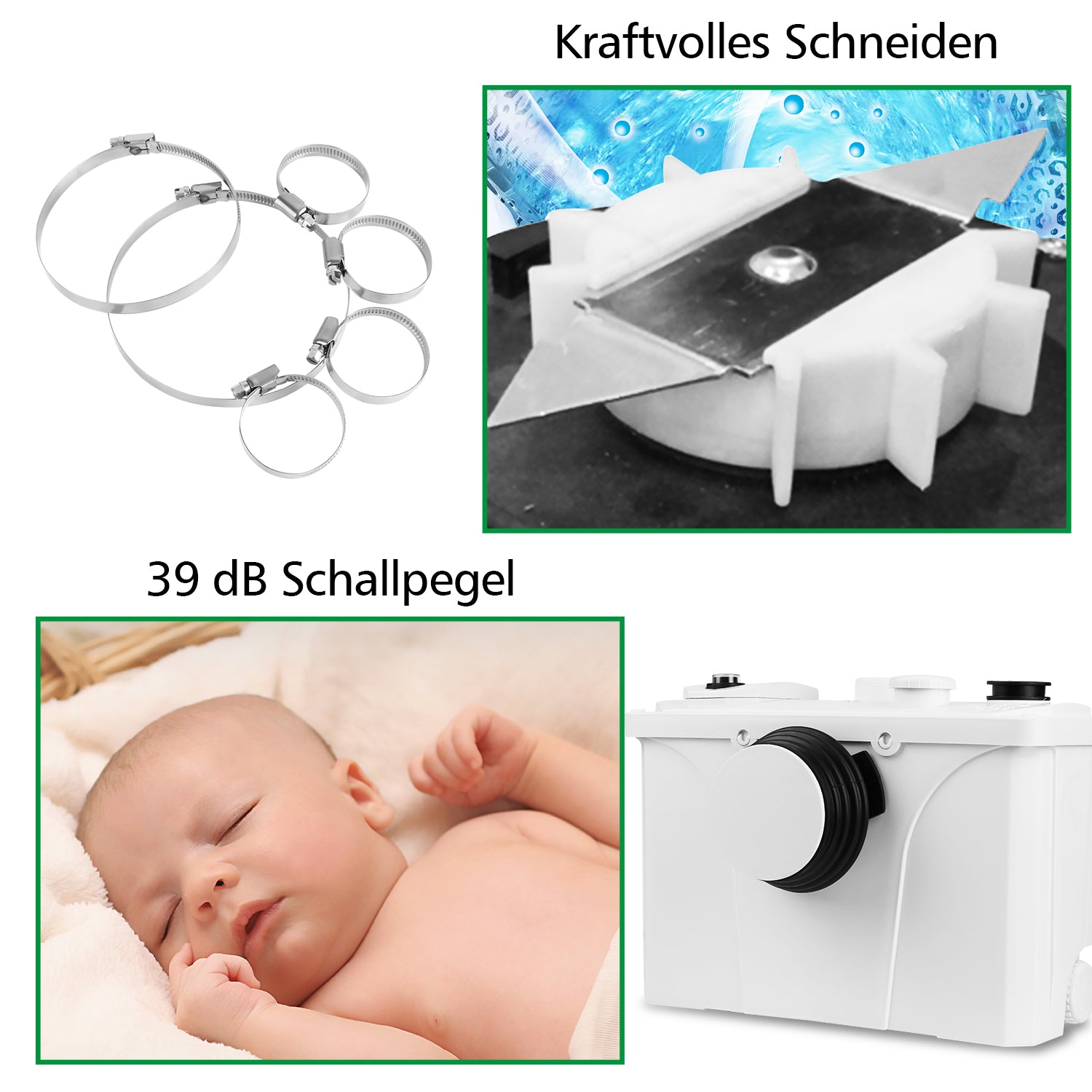

Silent operation: The lifting station operates at only 39 dB and is quiet during operation, allowing you to rest better without disturbances, making it very suitable for use in the household.

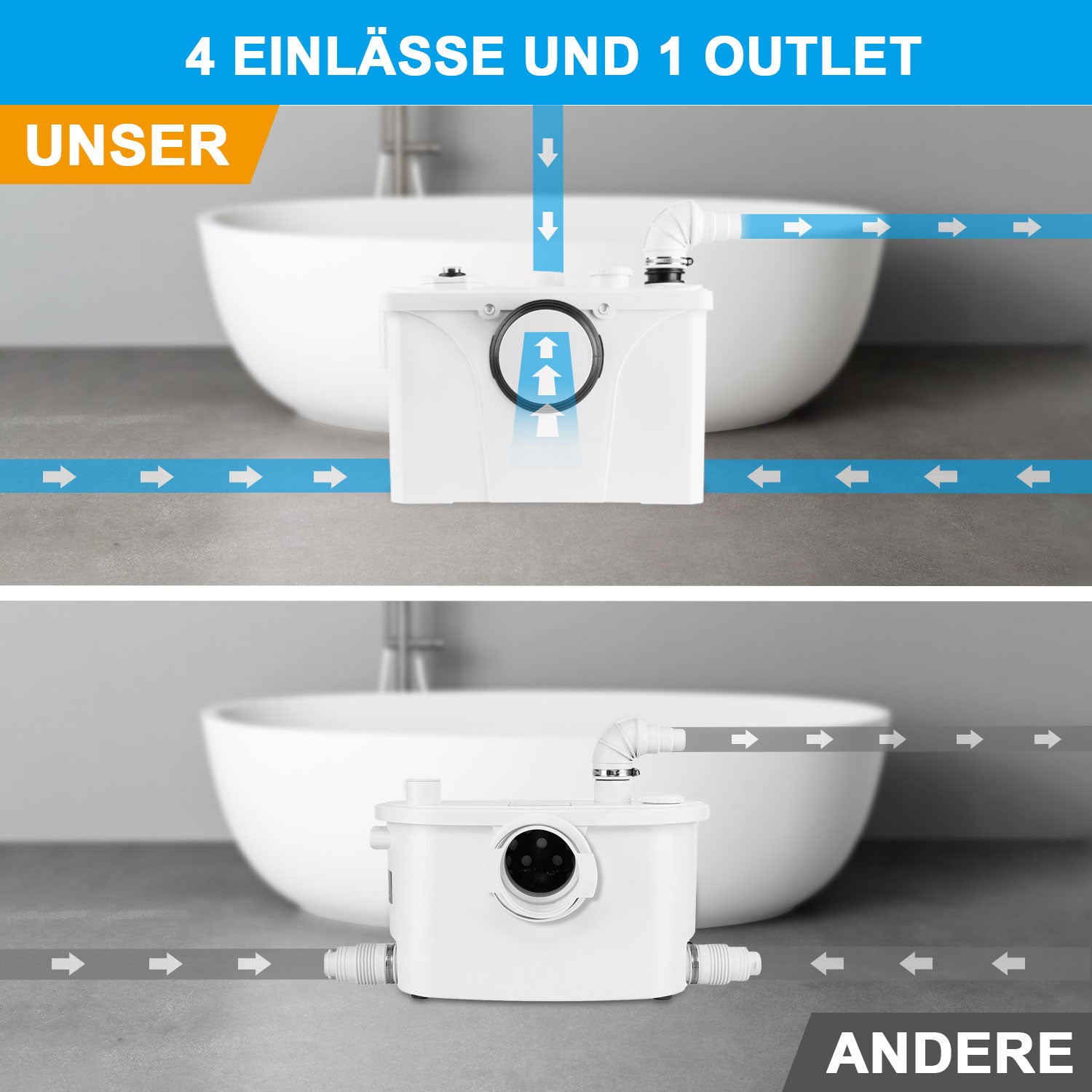

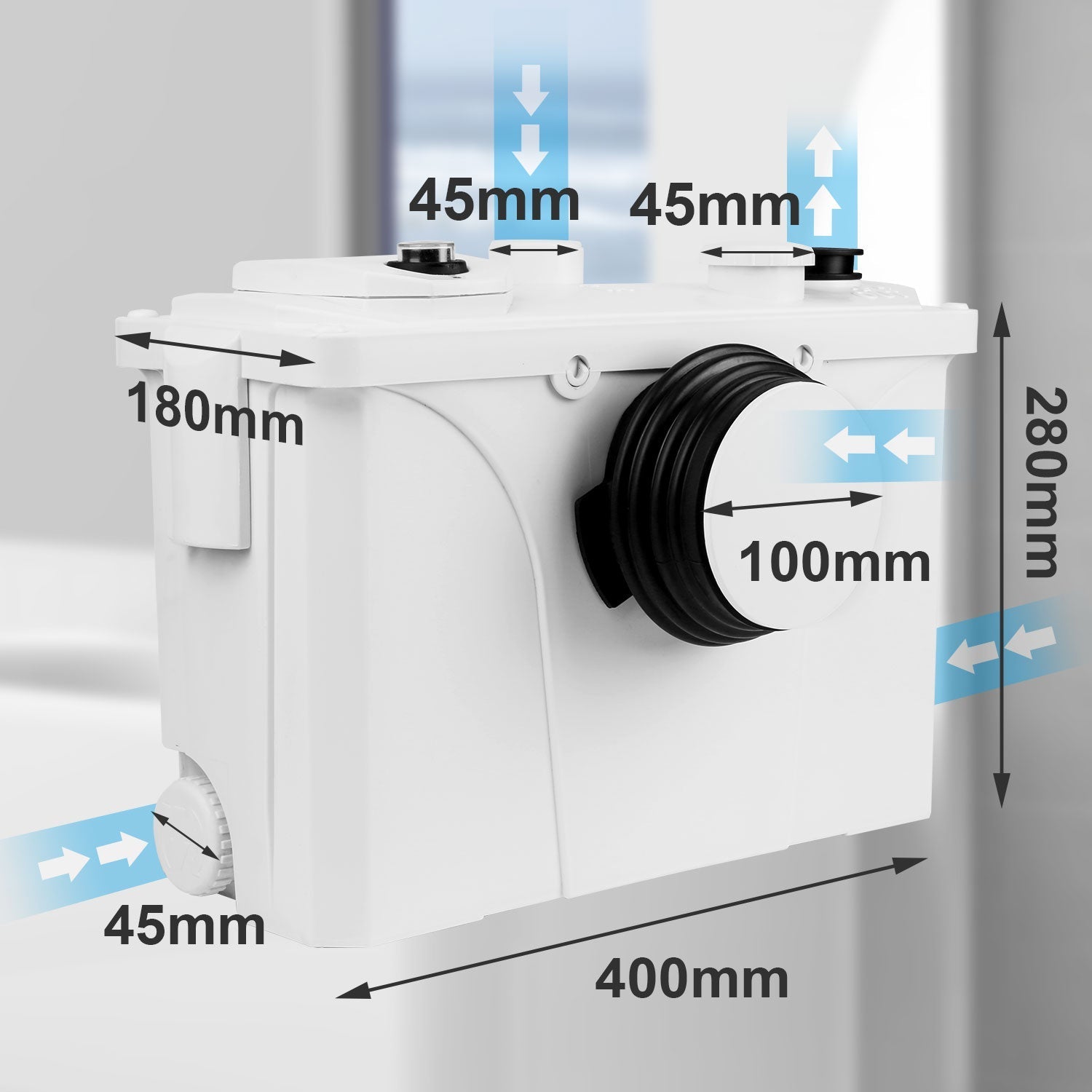

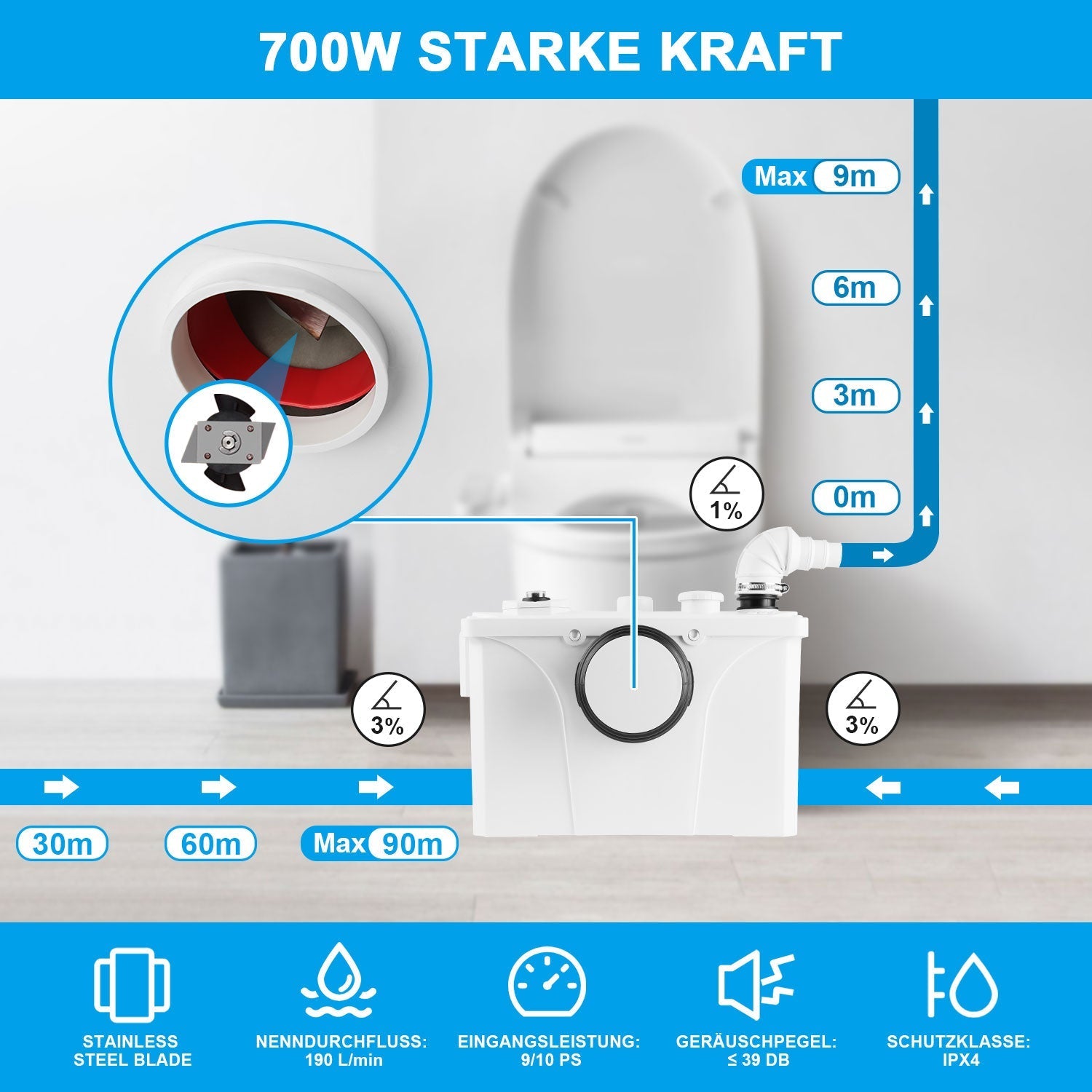

Powerful 700W: Wastewater pump motor with 700 W and a flow rate of 190 l/min with four inlets and one outlet, dimensions 40x28x18 cm, maximum vertical lifting height 9 m, maximum horizontal lifting distance 90 m.

Lifting station information: 700 W, flow rate: 190 l/min, operating water temperature 1 - 90°C, inner diameter of the inlet pipe connection: 40 mm, outer diameter of the inlet pipe connection: 50 mm, voltage/frequency: 220-240 V, 50 Hz.

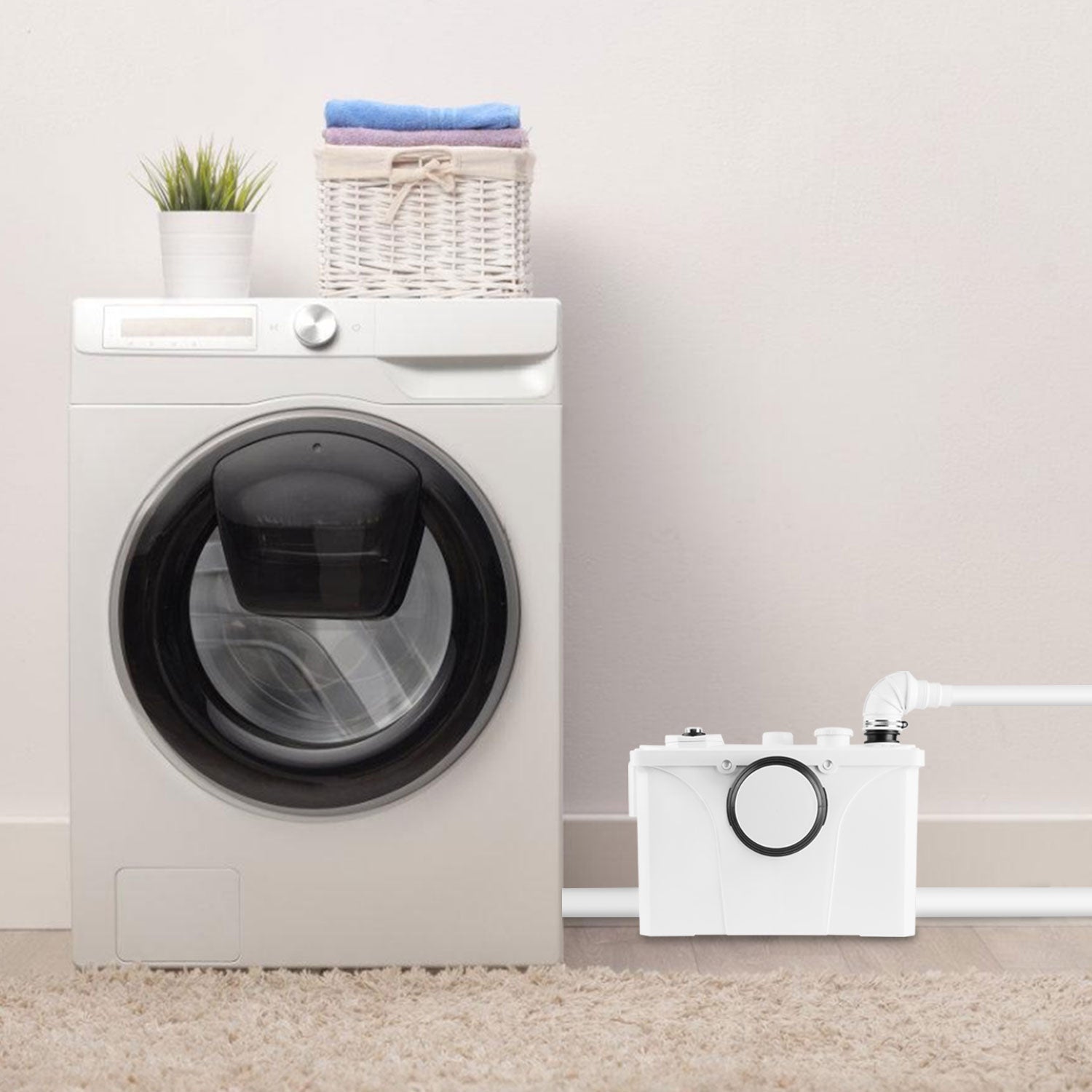

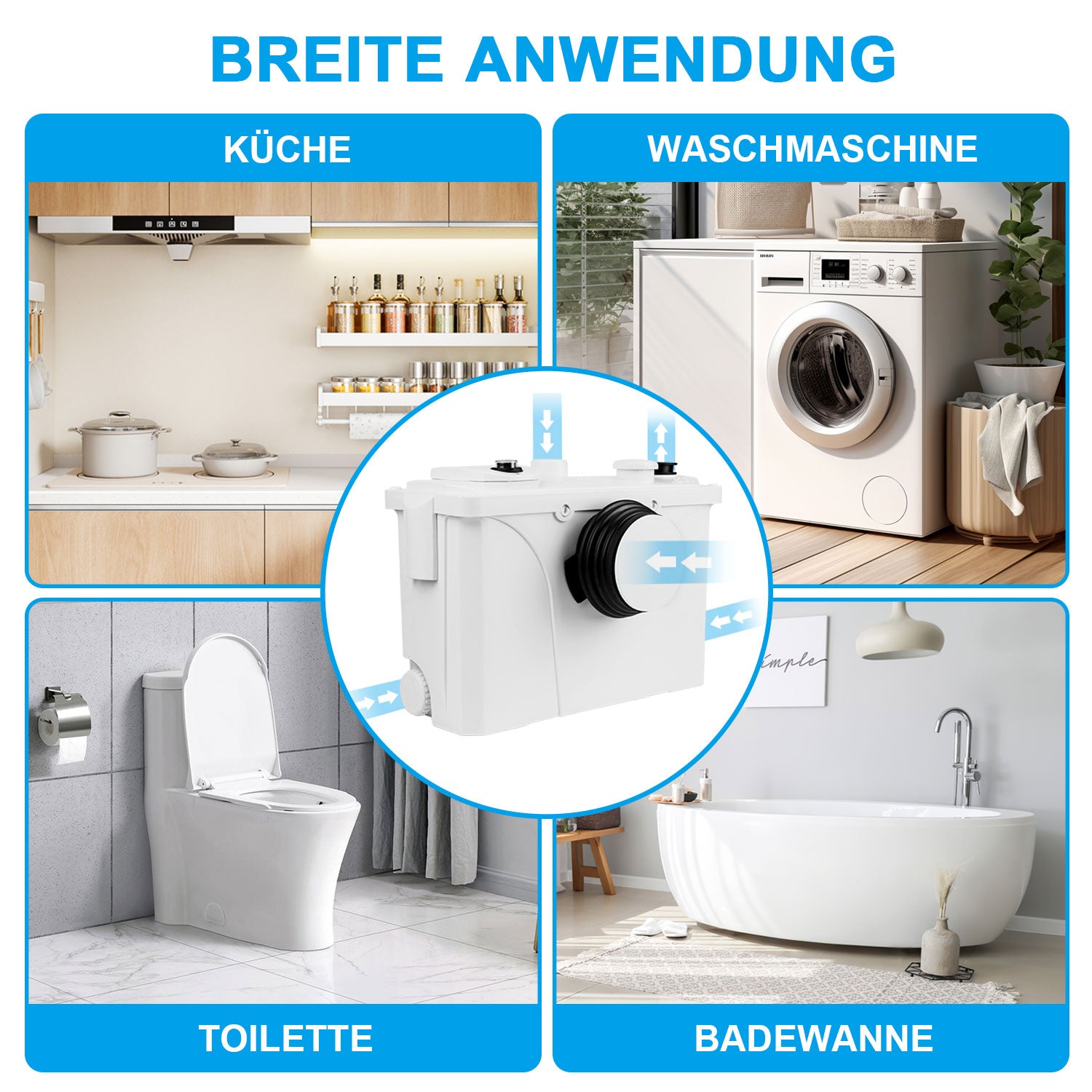

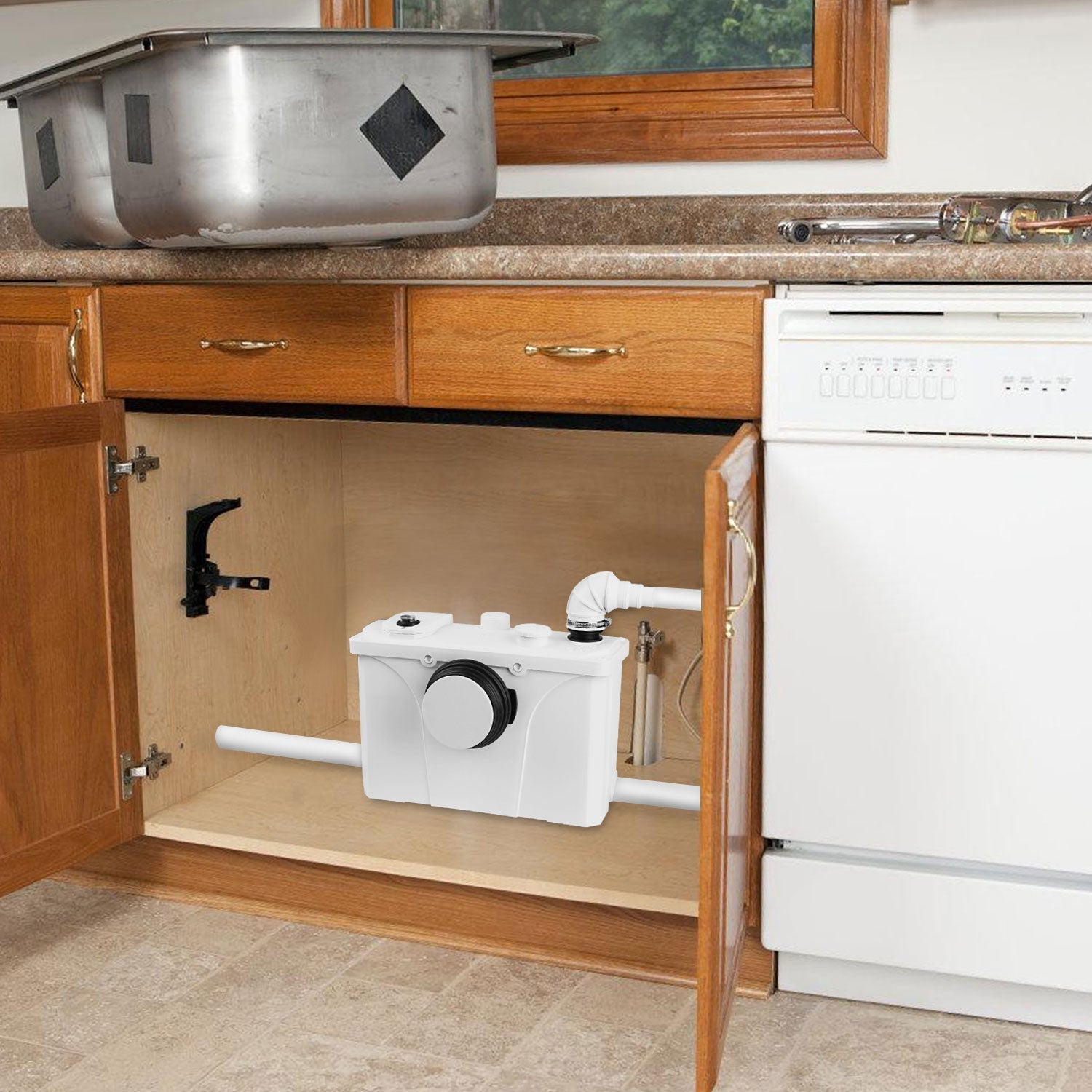

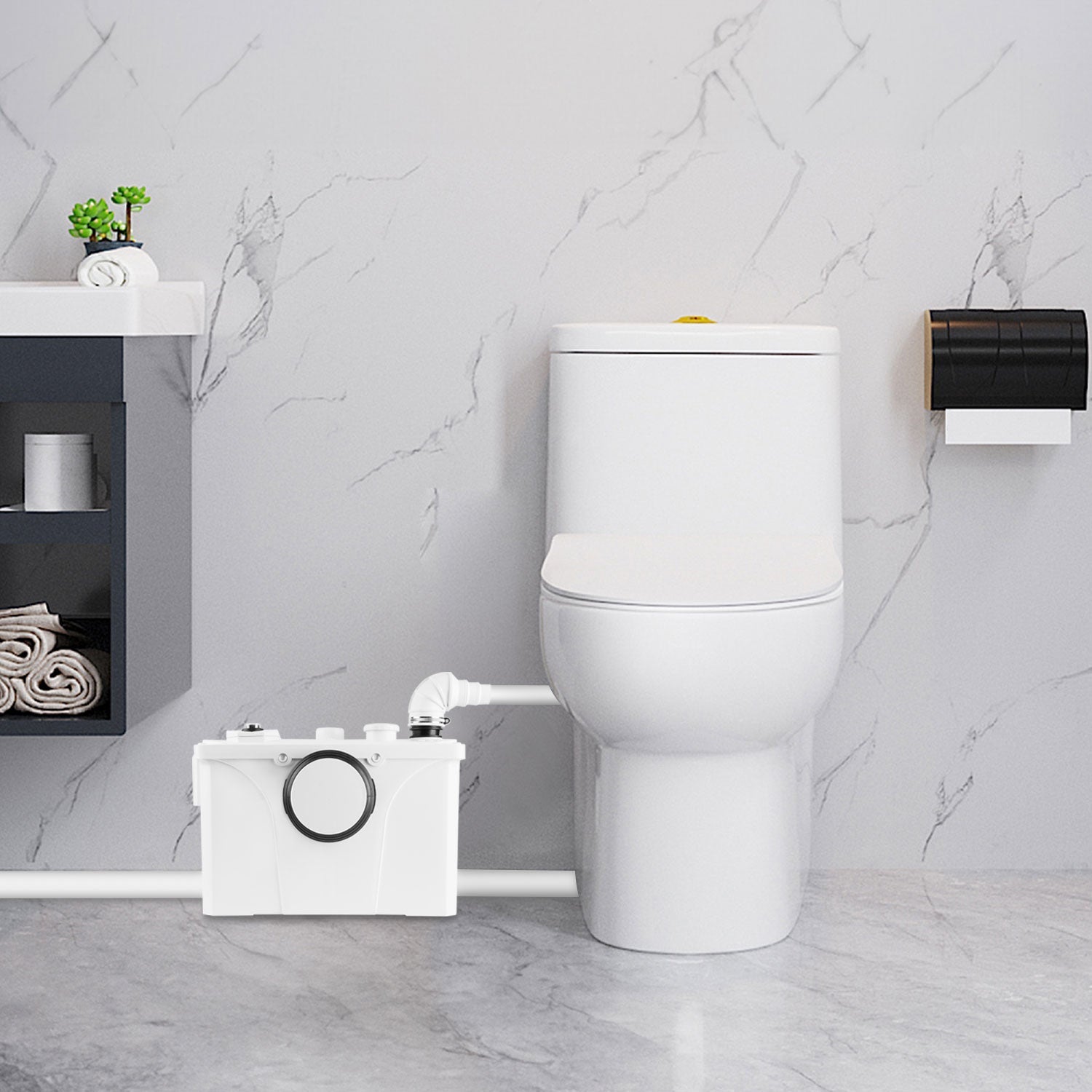

Multiple uses: The household lifting station can pump wastewater from sinks, bidets, showers, urinals, and condensate generators. The lifting station can be installed under almost any sink, behind a toilet, under a higher shower tray, or under a bathtub.

Specifications:
Color: white
Protection class: IPX4
Input power: 700W
Maximum vertical lift: 9 m
Maximum horizontal lift: 90 m
Operating water temperature: 1 - 90°C
Flow rate: 190 liters per minute
Material: plastic and stainless steel
Voltage / frequency: 220-240 V, 50 Hz
Inner diameter of the inlet stub: 40 mm
Outer diameter of the inlet stub: 50 mm
Inner diameter of the outlet pipe connection: 100 mm
Outer diameter of the outlet pipe connection: 106 mm
CE certification

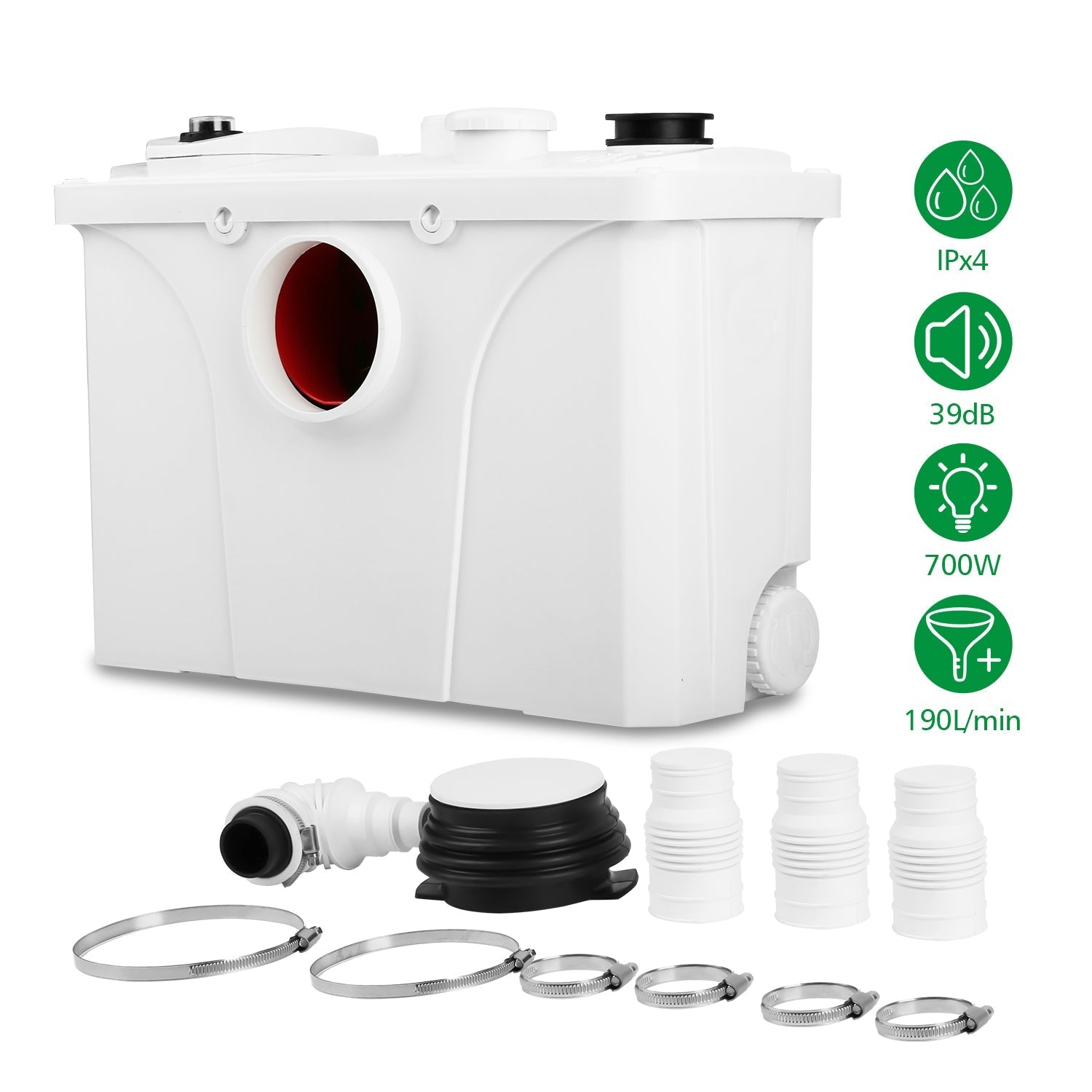

Delivery:
1x 700W lifting station
3x plugs
1x activated carbon
1x check valve
1x hose clamp 90-110mm
4x hose clamps, range 32-50mm
1x user manual (English)
