REX-C100 SSR Output Thermostat Digital Timer | Stornfield

Introducing the REX-C100 SSR Output Thermostat - Your Precise Temperature Control Solution

Are you in need of a reliable and accurate thermostat for your temperature control needs? Look no further! Our REX-C100 SSR Output Thermostat, complete with an English user manual, is here to meet your demands.

Technical Data:

• Model Number: REX-C Series
• Accuracy: ±0.5%FS ±1°C
• Supply Voltage: 100-240Vac, 50/60 Hz
• Input Types: Thermocouple: K, J, R, S, B, E, N, T; RTD: Pt100
• Output Types: Electromagnetic relay + SSR
• Power Supply: AC100-240V (Includes 110VAC and 220VAC)
• Control Method: PID or ON/OFF

Solid State Relay Output:

Included in this package is a robust 40A Solid State Relay with the following specifications:

1. Output Current: 40A
2. Input Voltage: DC 3-32V
3. Output Voltage: 24-380V AC

Key Features:

• CE Certified: Our product is CE certified.
• Ssr 40a: The PID temperature controller has been rigorously tested and engineered for precision and accuracy, even in challenging environments.
• Thermocouple Digital Temperature Controller: This digital temperature control system features built-in thermocouple technology for convenient and precise temperature adjustments.
• PID Temperature Thermostat: Enjoy intuitive temperature control with the PID temperature controller, allowing you to easily adjust your desired temperature settings.

Compatibility: Thermocouple Type K is used, making it more compatible with standard PCs and smartphones.

Product Details:

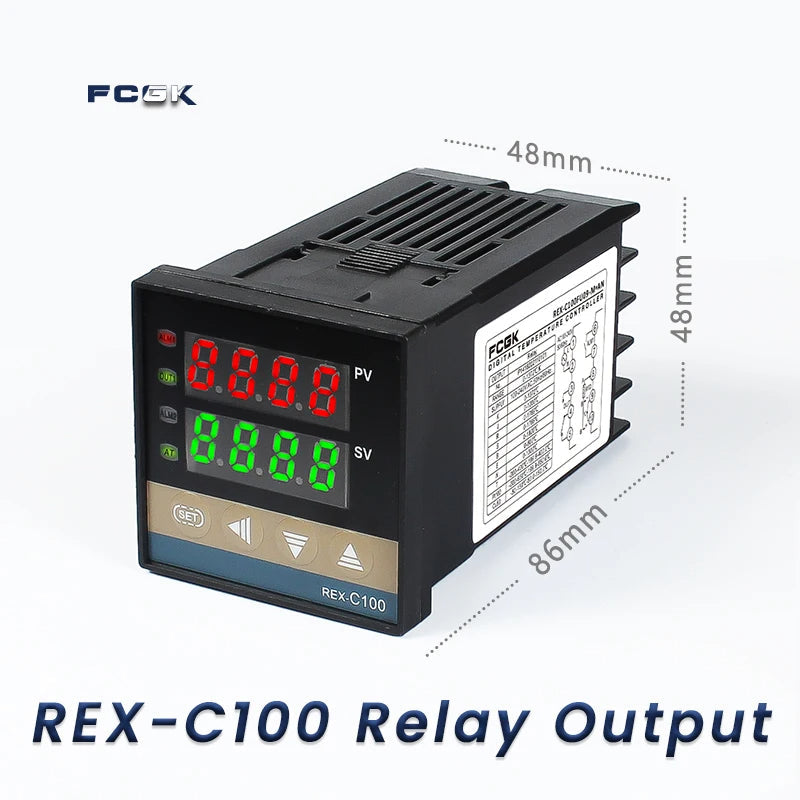

• Model Number: REX-C100
• Certification: CE

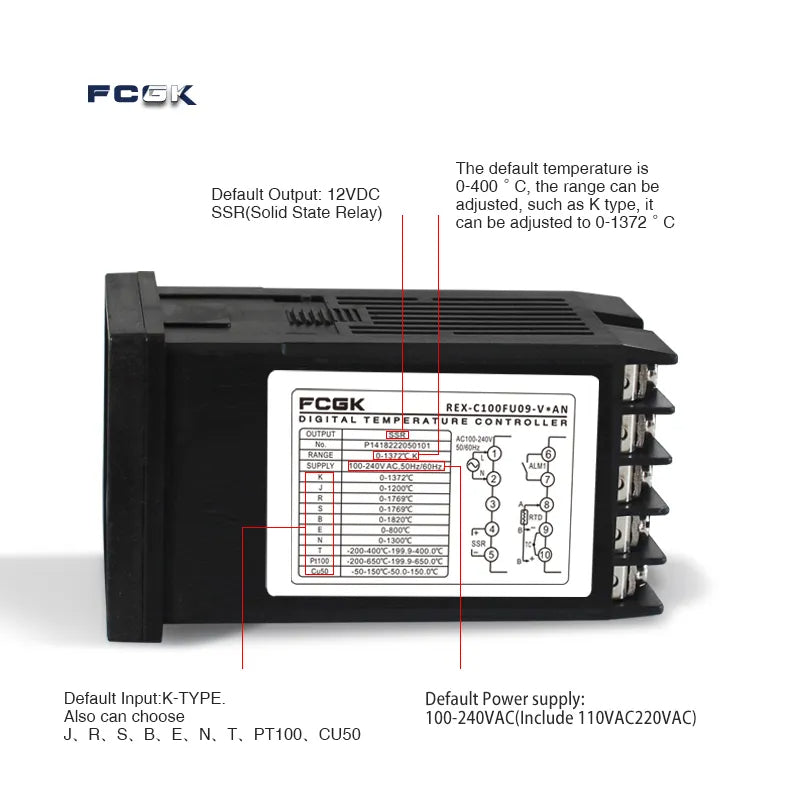

• Input: Compatible with K/E/J/R/S/B/N/T/PT100/CU500 adjustable
• Output: SSR
• Control Mode: PID, ON/OFF
• Power Supply: 100-240VAC, 50Hz/60Hz
• Working Environment: Operating temperature range of 0°C to 50°C, with humidity between 35% and 85%

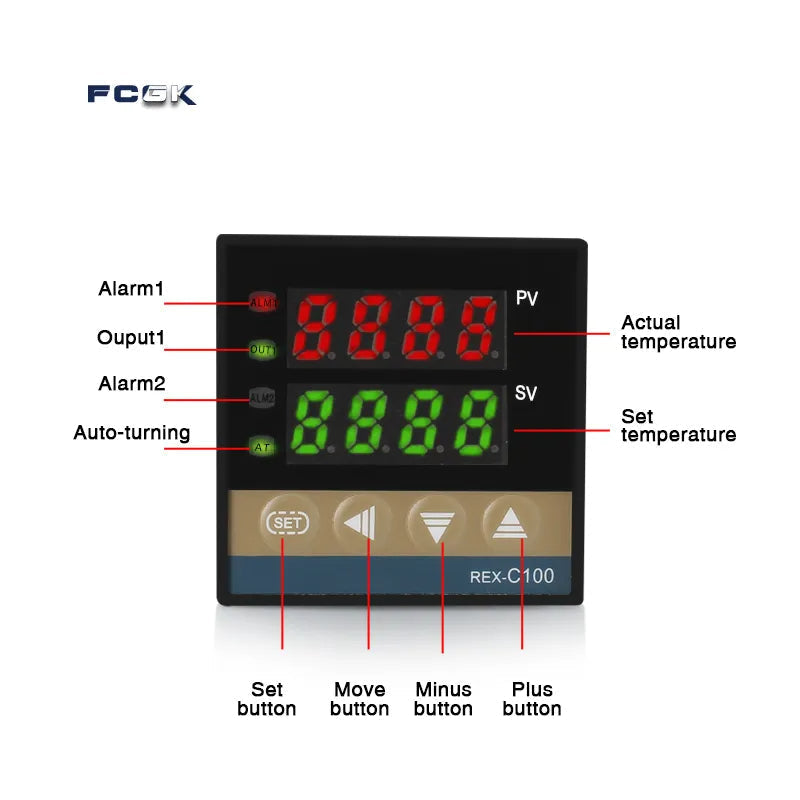

• Display: Clear and easy-to-read LCD display

Upgrade your temperature control capabilities with the REX-C100 SSR Output Thermostat. Don't miss out on this opportunity to enhance precision and convenience in temperature management.
